BARGAIN TWO-RAIL OVERHEAD CONVEYOR

Vidali sells:

Plant for manual and automatic painting of wooden frames, consisting of:

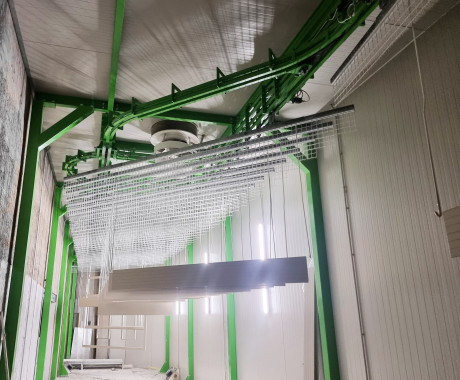

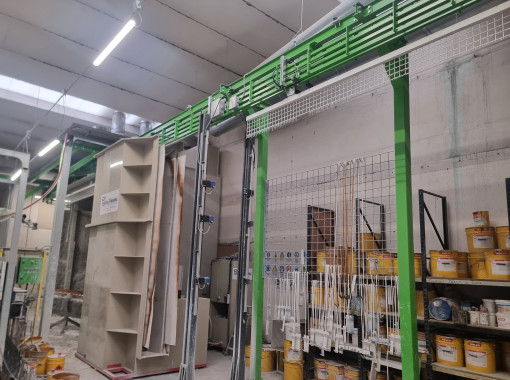

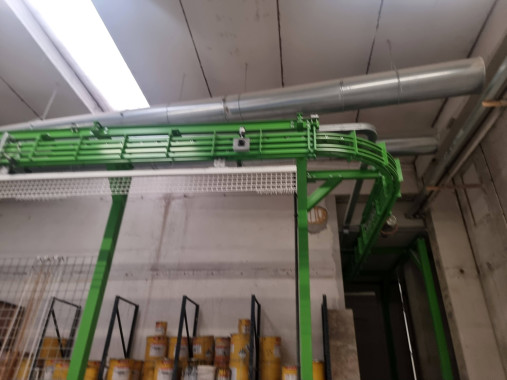

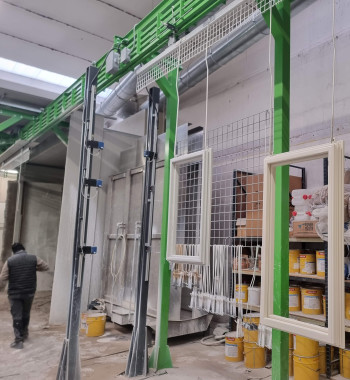

- Two-rail overhead conveyor of pieces holder bars (4mt long bars)

- Automatic rotation of the bars in front of the painting booth

- Automatic flow-coating impregnation booth

- Dry spray booth

- Drying tunnel: heating and air diffusion obtained by means of n°1 air conditioning unit equipped with a hot water battery and n°1 centrifugal fan of suitable capacity

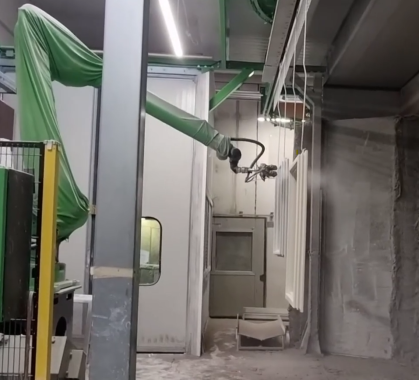

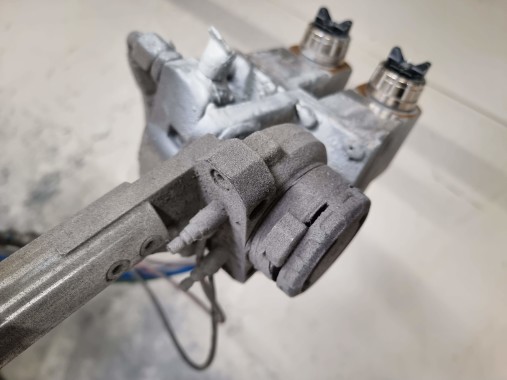

- Anthropomorphic painting robot, including 2D vision system, supplied with automatic nozzle cleaning programming

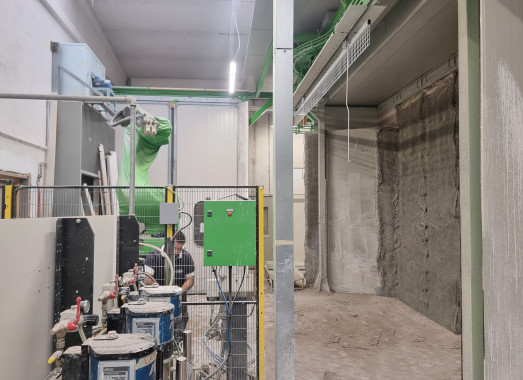

- Pump and paint dispensing system

Technical features:

Length: approx. 20,420mm // Height: approx. 4,600mm // Width: approx. 9,900mm

Hanging dimensions: approx. 4,000 x 3,000 sp100mm

Storage bar capacity: approx. 30 // Total bar capacity: approx. 34
